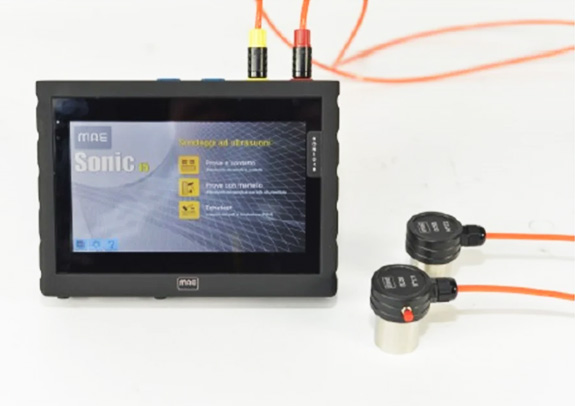

Ultrasonic (Sonic15) Testing Instrument

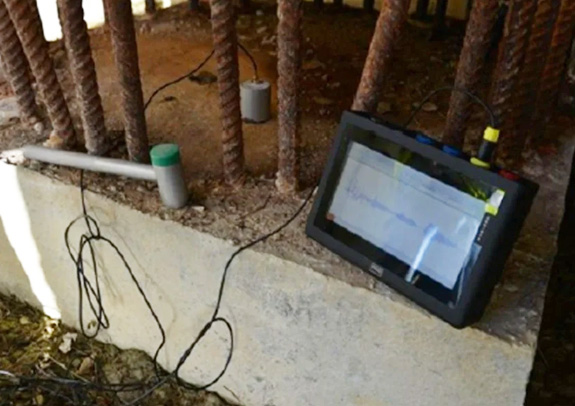

SONIC15 is a device for non Destructive Tests and surveys which uses ultrasonic pulse velocity and sonic tests on masonry with instrumented hammer. It supports extension, too for surveys on foundation piles with
P.I.T. methodology. In spite of compact dimension of the unit, there is a wide monitor of 7’’ with integrated touch screen which allows to use it in immediate and effective way during construction.
Acquisition and visualization parameters of waves could be easily changed in simple and immediate way through touch screen so that you can do the first exam on construction of recording data.
SONIC15 could be used, according to configurations, for surveys both on cement and concrete as diaphragms poles or structural elements than on masonry structures.
According to different kind of performed tests, it’s enough to connect instrument to necessary accessories as different kind of ultrasonic probes or impulsive
instrumented sources or not for impact tests.
SONIC15 instrument together with the new Controls digital sclerometer can be used for Sonreb tests.
Features
- Box with belt
- Flash 8GB eMMC
- RAM 1G DDR3 32bit bus
- Inner lithium battery of 13Ah
- Operating temperature: 0-60°
- CPU Quad Core Cortex-A9, 1.4GHz
- Graphic visualization of acquired signal
- Memorization of each single signal acquired
- Saving measurements campaign in a single file
- Rechargeable by micro USB 2.0 type-B connector
- Sizes and weight: L. 200 x H. 50 x P. 145 mm, 0.90 Kg
- Normative compliance: ASTM C597-09 e UNI En 12504-4
- Automatic zoom on cursor or on a temporal set up window
- USLab software for PC for report processing and generation
- Interactive graphics with zoom functions and cursor reading
- Possibility of modifying acquisition parameters while measuring
- Typical consumption: 500 mA during rest, 1A during measurements
- LCD 7" TFT full color, LED backlight, capacitive touch screen, resolution 800 x 480
