Electrical Resistivity Imaging Tomography Equipment
VHR multichannel resistivimeter 144 embedded channels

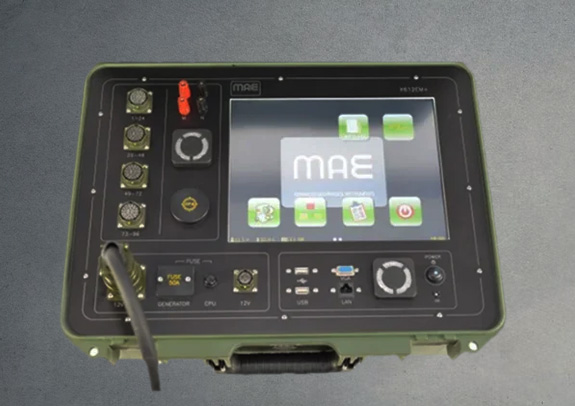

X612EM144 MAE response to new demands of high resolution and 3D analysis for geoelectrical measures. Instrument embeds all necessary for VES and multielectrode geoelectric prospection with 144 embedded electrodes.
Main feature of the instrument is the great performing speed both for 2D and 3D surveys, due to new and innovative data recording platform which allows data recording an almost all channels simultaneously.
X612EM144 has "preview" function, which allows to visualize preview of pseudosection derived from all data just recorded on field.
This function allows to immediately check recorded data. Instrument performs measurement or measurements cycle set bu user in automatic mode. Once concluded measurements, recorded data can be immediately visualized through "preview" function. 250 W power of internal generator can be increased up to 600 W upon customer request. Recording and data saving is made on internal Disk on Module memory or on disk on key USB. Unit is totally computerized and all operative functions are selected simply touching related menu on LCD color tranflective 12,2" monitor with embedded touch screen.
Features
- Resolution 24 bit
- Embedded CPU and display
- Pseudo section in real time
- Scalability (by increasing the number of electrodes, also the number of measuring channels increases)
- Parallelization of pole-dipole, pole-pole, dipole-dipole measurements and three-dimensional configurations
